BEND HXS
Drain, Waste & Vent (DWV) bend’s allow for deflection of a DWV line
CSA B181.2 approved fittings
Larger diameter available upon request
*Denotes injection moulded fitting, all other fittings are fabricated
REQ Submittal Drawing
Demande de Dessin D’atelier
22½° BEND HXS
| Product Code | Item |
|---|---|
| 415 2206* | 6" 22½° DWV BEND HXS* |
| 415 2208* | 8" 22½° DWV BEND HXS* |
| 415 2210 | 10" 22½° DWV BEND HXS |
| 415 2212 | 12" 22½° DWV BEND HXS |
| 415 2214 | 14" 22½° DWV BEND HXS |
| 415 2216 | 16" 22½° DWV BEND HXS |
| 415 2218 | 18" 22½° DWV BEND HXS |

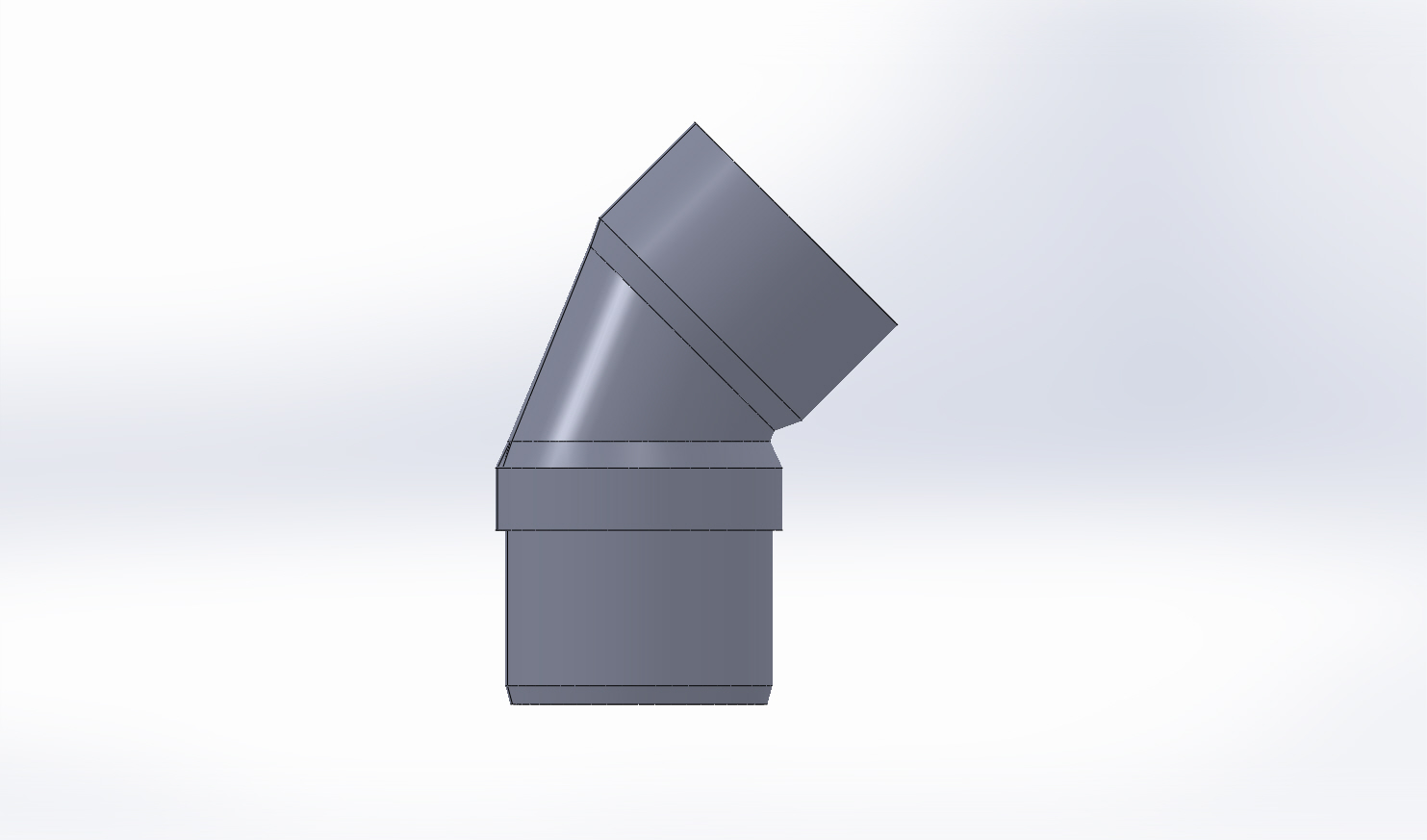

45° BEND HXS
| Product Code | Item |
|---|---|
| 415 4504* | 4" 45° DWV BEND HXS* |
| 415 4506* | 6" 45° DWV BEND HXS* |
| 415 4508* | 8" 45° DWV BEND HXS* |
| 415 4510 | 10" 45° DWV BEND HXS |
| 415 4512 | 12" 45° DWV BEND HXS |
| 415 4514 | 14" 45° DWV BEND HXS |
| 415 4516 | 16" 45° DWV BEND HXS |
| 415 4518 | 18" 45° DWV BEND HXS |
90° BEND HXS
| Product Code | Item |
|---|---|
| 415 9004* | 4" 90° DWV BEND HXS* |
| 415 9006* | 6" 90° DWV BEND HXS* |
| 415 9008* | 8" 90° DWV BEND HXS* |
| 415 9010 | 10" 90° DWV BEND HXS |
| 415 9012 | 12" 90° DWV BEND HXS |
| 415 9014 | 14" 90° DWV BEND HXS |
| 415 9016 | 16" 90° DWV BEND HXS |
| 415 9018 | 18" 90° DWV BEND HXS |
22½° COUDE HXS
| Code de Produit | Article |
|---|---|
| 415 2206* | 6" 22½° DWV COUDE HXS* |
| 415 2208* | 8" 22½° DWV COUDE HXS* |
| 415 2210 | 10" 22½° DWV COUDE HXS |
| 415 2212 | 12" 22½° DWV COUDE HXS |
| 415 2214 | 14" 22½° DWV COUDE HXS |
| 415 2216 | 16" 22½° DWV COUDE HXS |
| 415 2218 | 18" 22½° DWV COUDE HXS |
45° COUDE HXS
| Code de Produit | Article |
|---|---|
| 415 4504* | 4" 45° DWV COUDE HXS* |
| 415 4506* | 6" 45° DWV COUDE HXS* |
| 415 4508* | 8" 45° DWV COUDE HXS* |
| 415 4510 | 10" 45° DWV COUDE HXS |
| 415 4512 | 12" 45° DWV COUDE HXS |
| 415 4514 | 14" 45° DWV COUDE HXS |
| 415 4516 | 16" 45° DWV COUDE HXS |
| 415 4518 | 18" 45° DWV COUDE HXS |
90° COUDE HXS
| Code de Produit | Article |
|---|---|
| 415 9004* | 4" 90° DWV COUDE HXS* |
| 415 9006* | 6" 90° DWV COUDE HXS* |
| 415 9008* | 8" 90° DWV COUDE HXS* |
| 415 9010 | 10" 90° DWV COUDE HXS |
| 415 9012 | 12" 90° DWV COUDE HXS |
| 415 9014 | 14" 90° DWV COUDE HXS |
| 415 9016 | 16" 90° DWV COUDE HXS |
| 415 9018 | 18" 90° DWV COUDE HXS |
