BEND HXH
Drain, Waste & Vent (DWV) bend’s allow for deflection of a DWV line
CSA B181.2 approved fittings
Larger diameter available upon request
*Denotes injection moulded fitting, all other fittings are fabricated
REQ Submittal Drawing
Demande de Dessin D’atelier
22½° BEND HXH
| Product Code | Item |
|---|---|
| 416 2204* | 4" 22½° DWV BEND HXH* |
| 416 2206* | 6" 22½° DWV BEND HXH* |
| 416 2208* | 8" 22½° DWV BEND HXH* |
| 416 2210 | 10" 22½° DWV BEND HXH |
| 416 2212 | 12" 22½° DWV BEND HXH |
| 416 2214 | 14" 22½° DWV BEND HXH |
| 416 2216 | 16" 22½° DWV BEND HXH |
| 416 2218 | 18" 22½° DWV BEND HXH |

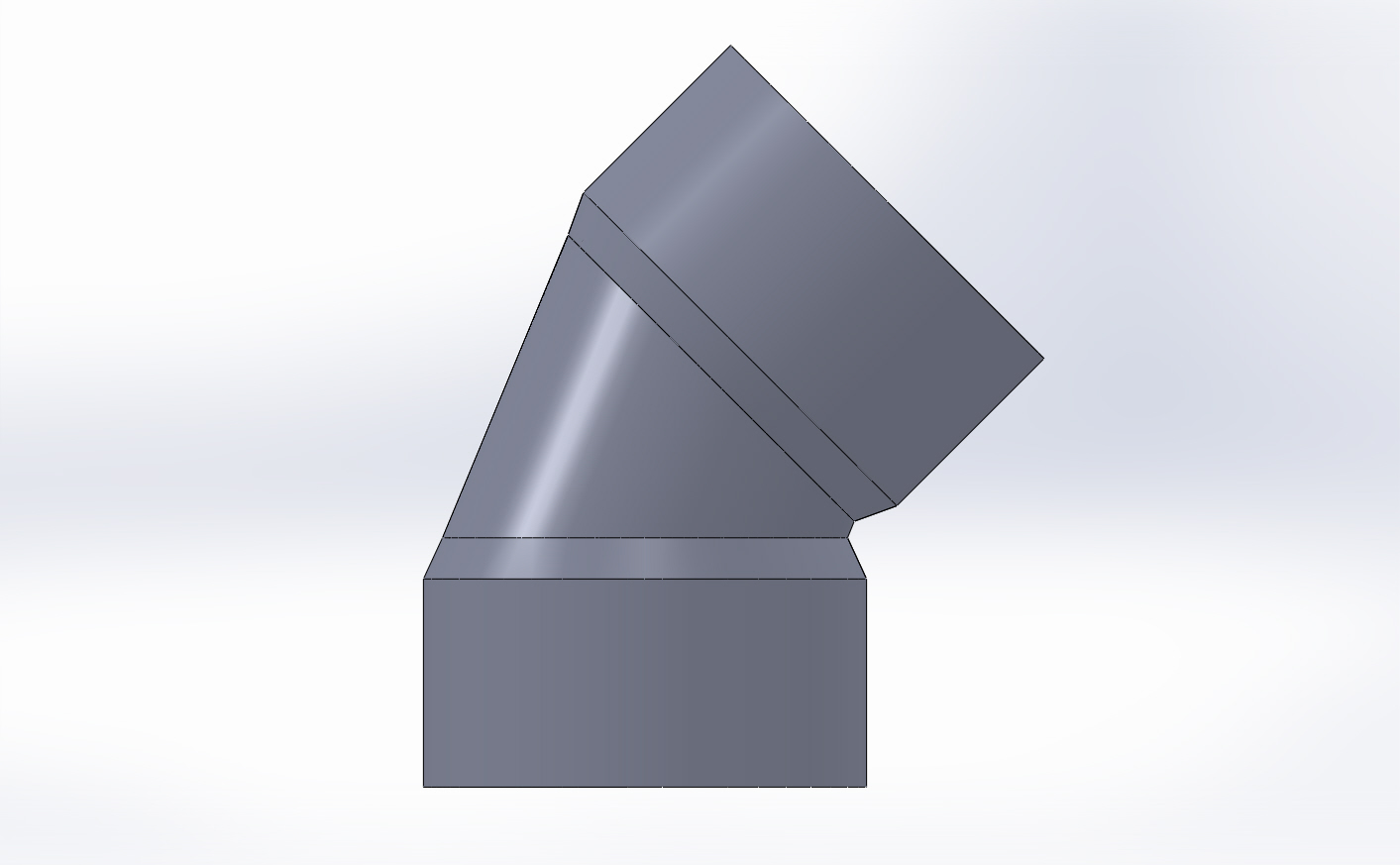

45° BEND HXH
| Product Code | Item |
|---|---|
| 416 4504* | 4" 45° DWV BEND HXH* |
| 416 4506* | 6" 45° DWV BEND HXH* |
| 416 4508* | 8" 45° DWV BEND HXH* |
| 416 4510 | 10" 45° DWV BEND HXH |
| 416 4512 | 12" 45° DWV BEND HXH |
| 416 4514 | 14" 45° DWV BEND HXH |
| 416 4516 | 16" 45° DWV BEND HXH |
| 416 4518 | 18" 45° DWV BEND HXH |
90° BEND HXH
| Product Code | Item |
|---|---|
| 416 9004* | 4" 90° DWV BEND HXH* |
| 416 9006* | 6" 90° DWV BEND HXH* |
| 416 9008* | 8" 90° DWV BEND HXH* |
| 416 9010 | 10" 90° DWV BEND HXH |
| 416 9012 | 12" 90° DWV BEND HXH |
| 416 9014 | 14" 90° DWV BEND HXH |
| 416 9016 | 16" 90° DWV BEND HXH |
| 416 9018 | 18" 90° DWV BEND HXH |
22½° COUDE HXH
| Code de Produit | Article |
|---|---|
| 416 2204* | 4" 22½° DWV COUDE HXH* |
| 416 2206* | 6" 22½° DWV COUDE HXH* |
| 416 2208* | 8" 22½° DWV COUDE HXH* |
| 416 2210 | 10" 22½° DWV COUDE HXS |
| 416 2212 | 12" 22½° DWV COUDE HXS |
| 416 2214 | 14" 22½° DWV COUDE HXS |
| 416 2216 | 16" 22½° DWV COUDE HXS |
| 416 2218 | 18" 22½° DWV COUDE HXS |
45° COUDE HXH
| Code de Produit | Article |
|---|---|
| 416 4504* | 4" 45° DWV COUDE HXH* |
| 416 4506* | 6" 45° DWV COUDE HXH* |
| 416 4508* | 8" 45° DWV COUDE HXH* |
| 416 4510 | 10" 45° DWV COUDE HXS |
| 416 4512 | 12" 45° DWV COUDE HXS |
| 416 4514 | 14" 45° DWV COUDE HXS |
| 416 4516 | 16" 45° DWV COUDE HXS |
| 416 4518 | 18" 45° DWV COUDE HXS |
90° COUDE HXH
| Code de Produit | Article |
|---|---|
| 416 9004* | 4" 90° DWV COUDE HXH* |
| 416 9006* | 6" 90° DWV COUDE HXH* |
| 416 9008* | 8" 90° DWV COUDE HXH* |
| 416 9010 | 10" 90° DWV COUDE HXS |
| 416 9012 | 12" 90° DWV COUDE HXS |
| 416 9014 | 14" 90° DWV COUDE HXS |
| 416 9016 | 16" 90° DWV COUDE HXS |
| 416 9018 | 18" 90° DWV COUDE HXS |
