BEND GXG
Larger diameter available upon request
Available in DR21(200psi), DR26(160psi), DR32.5(125psi) & DR41(100psi)
*Denotes injection moulded fitting, all other fittings are fabricated
REQ Submittal Drawing
Demande de Dessin D’atelier
11¼° BEND GXG
| Product Code | Item |
|---|---|
| 716 1103 | 3" 11¼° SERIES 200 (DR21) BEND GXG |
| 716 1104 | 4" 11¼° SERIES 200 (DR21) BEND GXG |
| 716 1106 | 6" 11¼° SERIES 200 (DR21) BEND GXG |
| 716 1108 | 8" 11¼° SERIES 200 (DR21) BEND GXG |
| 716 1110 | 10" 11¼° SERIES 200 (DR21) BEND GXG |
| 716 1112 | 12" 11¼° SERIES 200 (DR21) BEND GXG |
22½° BEND GXG
| Product Code | Item |
|---|---|
| 716 2203 | 3" 22½° SERIES 200 (DR21) BEND GXG |
| 716 2204 | 4" 22½° SERIES 200 (DR21) BEND GXG |
| 716 2206 | 6" 22½° SERIES 200 (DR21) BEND GXG |
| 716 2208 | 8" 22½° SERIES 200 (DR21) BEND GXG |
| 716 2210 | 10" 22½° SERIES 200 (DR21) BEND GXG |
| 716 2212 | 12" 22½° SERIES 200 (DR21) BEND GXG |

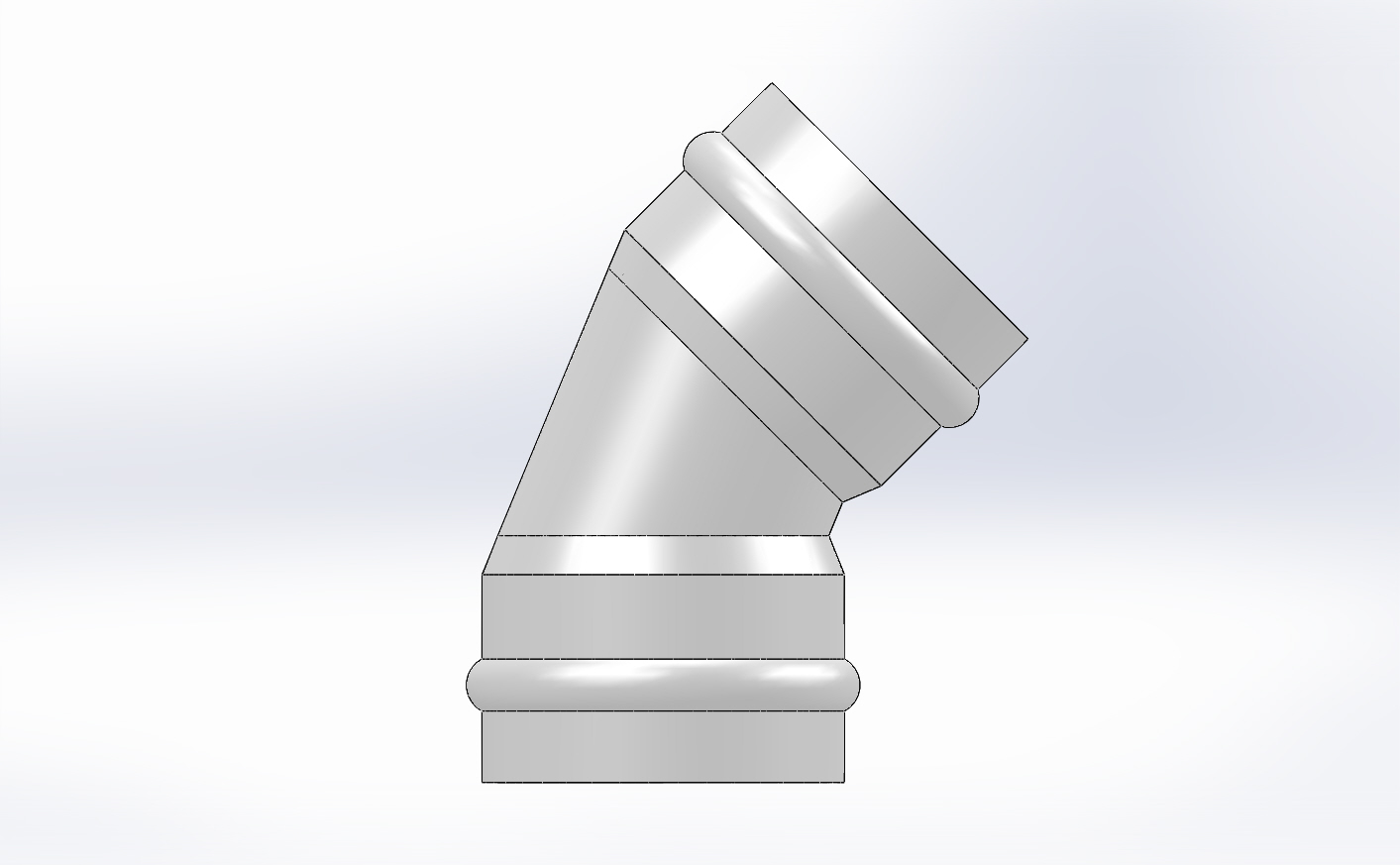

45° BEND GXG
| Product Code | Item |
|---|---|
| 716 4503* | 3" 45° SERIES 200 (DR21) BEND GXG* |
| 716 4504* | 4" 45° SERIES 200 (DR21) BEND GXG* |
| 716 4506* | 6" 45° SERIES 200 (DR21) BEND GXG* |
| 716 4508* | 8" 45° SERIES 200 (DR21) BEND GXG* |
| 716 4510 | 10" 45° SERIES 200 (DR21) BEND GXG |
| 716 4512 | 12" 45° SERIES 200 (DR21) BEND GXG |
90° BEND GXG
| Product Code | Item |
|---|---|
| 716 9003* | 3" 90° SERIES 200 (DR21) BEND GXG* |
| 716 9004* | 4" 90° SERIES 200 (DR21) BEND GXG* |
| 716 9006* | 6" 90° SERIES 200 (DR21) BEND GXG* |
| 716 9008* | 8" 90° SERIES 200 (DR21) BEND GXG* |
| 716 9010 | 10" 90° SERIES 200 (DR21) BEND GXG |
| 716 9012 | 12" 90° SERIES 200 (DR21) BEND GXG |
11¼° COUDE GXG
| Code de Produit | Article |
|---|---|
| 716 1103 | 3" 11¼° SÉRIES 200 (DR21) COUDE GXG |
| 716 1104 | 4" 11¼° SÉRIES 200 (DR21) COUDE GXG |
| 716 1106 | 6" 11¼° SÉRIES 200 (DR21) COUDE GXG |
| 716 1108 | 8" 11¼° SÉRIES 200 (DR21) COUDE GXG |
| 716 1110 | 10" 11¼° SÉRIES 200 (DR21) COUDE GXG |
| 716 1112 | 12" 11¼° SÉRIES 200 (DR21) COUDE GXG |
22½° COUDE GXG
| Code de Produit | Article |
|---|---|
| 716 2203 | 3" 22½° SÉRIES 200 (DR21) COUDE GXG |
| 716 2204 | 4" 22½° SÉRIES 200 (DR21) COUDE GXG |
| 716 2206 | 6" 22½° SÉRIES 200 (DR21) COUDE GXG |
| 716 2208 | 8" 22½° SÉRIES 200 (DR21) COUDE GXG |
| 716 2210 | 10" 22½° SÉRIES 200 (DR21) COUDE GXG |
| 716 2212 | 12" 22½° SÉRIES 200 (DR21) COUDE GXG |
45° COUDE GXG
| Code de Produit | Article |
|---|---|
| 716 4503* | 3" 45° SÉRIES 200 (DR21) COUDE GXG* |
| 716 4504* | 4" 45° SÉRIES 200 (DR21) COUDE GXG* |
| 716 4506* | 6" 45° SÉRIES 200 (DR21) COUDE GXG* |
| 716 4508* | 8" 45° SÉRIES 200 (DR21) COUDE GXG* |
| 716 4510 | 10" 45° SÉRIES 200 (DR21) COUDE GXG |
| 716 4512 | 12" 45° SÉRIES 200 (DR21) COUDE GXG |
90° COUDE GXG
| Code de Produit | Article |
|---|---|
| 716 9003* | 3" 90° SÉRIES 200 (DR21) COUDE GXG* |
| 716 9004* | 4" 90° SÉRIES 200 (DR21) COUDE GXG* |
| 716 9006* | 6" 90° SÉRIES 200 (DR21) COUDE GXG* |
| 716 9008* | 8" 90° SÉRIES 200 (DR21) COUDE GXG* |
| 716 9010 | 10" 90° SÉRIES 200 (DR21) COUDE GXG |
| 716 9012 | 12" 90° SÉRIES 200 (DR21) COUDE GXG |
